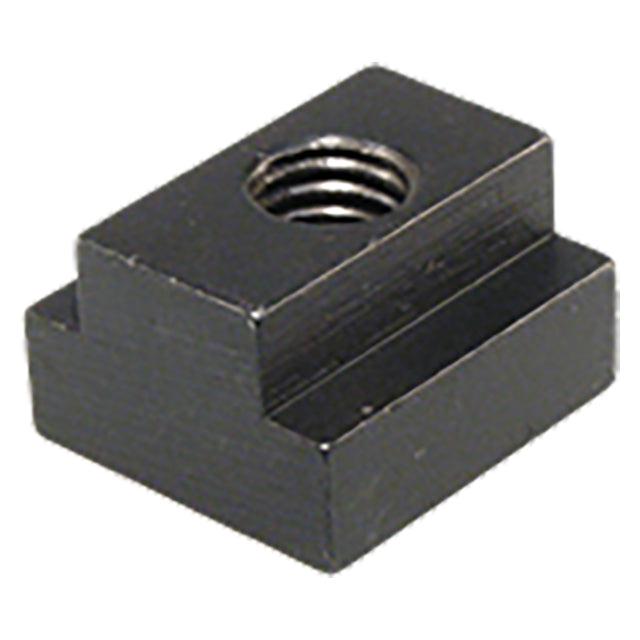

T Nuts are high-strength hardened nuts, fully machined to fit exactly in a specific machine-table T slot. Made in USA.
Application Information
Safety-Stop Feature
Our T Nuts are tapped to a precise, limited depth so that the threads stop one thread short of going through the nut. This feature stops the stud before it extends through the nut and contacts the bottom of the T slot, where continued tightening could jack the T Nut up and out of the table, breaking the table slot. This important feature prevents accidental damage to expensive machine tables.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| T Nuts | Mild Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Table Slot Size | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 11/16" or 18mm | M16 | 2mm | 17.32mm | 28.6mm | 32mm | 19mm | 11.1mm |
