Product Information

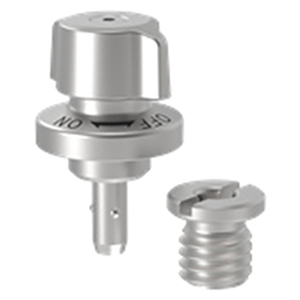

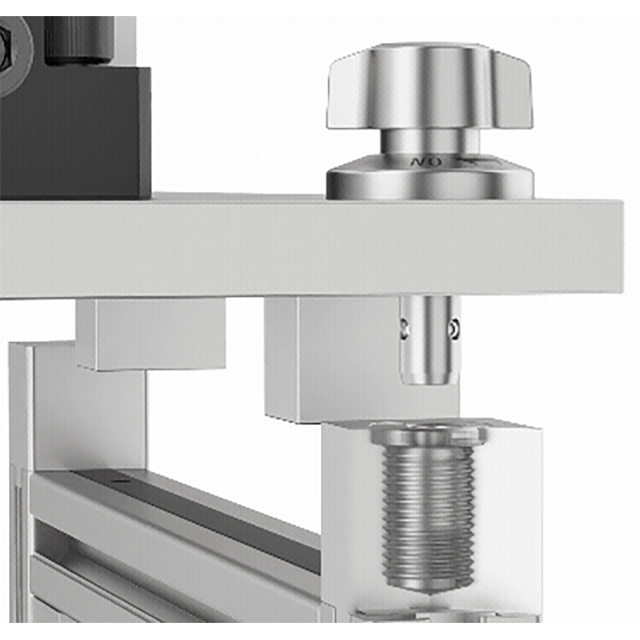

These quick release fasteners provide positive locking in quick change applications where there is frequent insertion and removal of a fastener. They are designed to be used with the ball-locking receptacles referenced in the table. The pin is fastened to the fixture and the receptacle is mounted to the base. When the knob is rotated, the balls on the pin expand and lock the fixture into place. These fasteners will not release until the knob is turned to "OFF", allowing the balls to retract into the shank so that the pin can be removed from the receptacle without the use of tools. The end of the pin is tapered to make alignment of the pin easy. They can be used with locating pins to provide highly accurate positioning.
Application Information_1
| Item | Material | Head Tread | Stud |
| Knob | SCS13 Stainless Steel | - | - |
| Body | 303 Stainless Steel | - | - |
| Spindle | SUS420J2 Stainless Steel | Quenched & Tempered | - |
| Balls | 440C Stainless Steel | Quenched & Tempered | - |
| Spring | SUS304WPB Stainless Steel | - | - |
| Receptacle | 303 Stainless Steel | - | - |
| Manufacturer Part Number | CLM-10-QTBLR-S |
| Product Type | Quarter Turn Ball Lock Pin |
