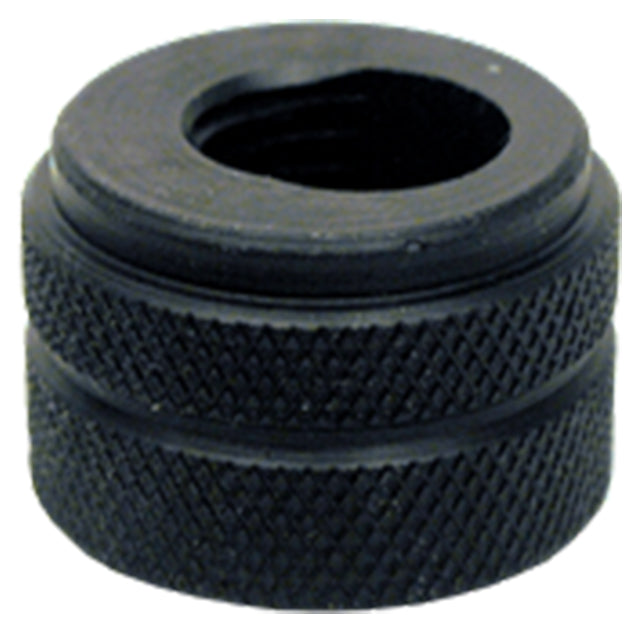

Quick-Acting Knurled Knobs
Quick-acting knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading. Tilt knob to slide in, then straighten to engage threads and tighten. To remove, loosen knob, then tilt to slide out. Made in USA.
Application Information
Design Considerations
For full strength, use a stud that extends slightly beyond the knob, to engage all threads.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Diameter (mm) | C (mm) | D (mm) | E Diameter (mm) | F Diameter (mm) |
| M10 | 1.5mm | 22mm | 16mm | 3mm | 25.5mm | 10.5mm |
