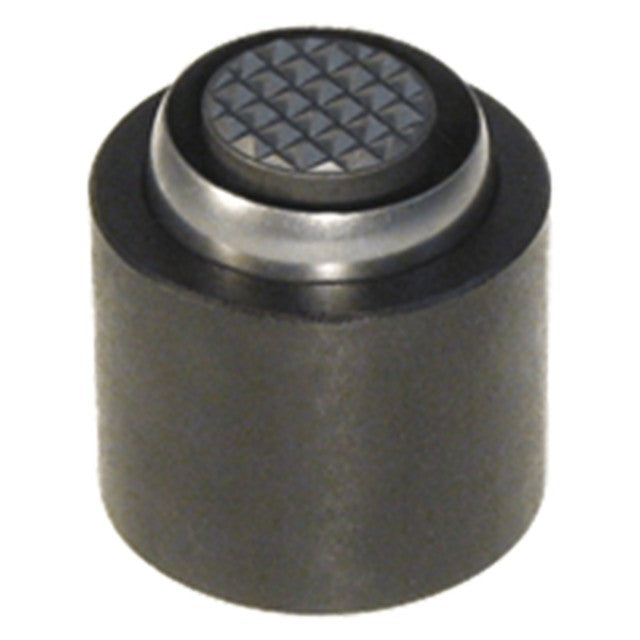

Gripper Swivel Pads
Rest pad with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Pads include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.
Application Information
Gripper Swivel Pads can be surface mounted or installed in a counterbored hole.
Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D Thread | Thread Pitch (mm) | E (mm) | F Ball Diameter (mm) | H (mm) | J (mm) | Matching Round Gripper Size |
| 10mm | 17mm | 22mm | M6 | 1mm | 7.5mm | 13mm | 18mm | 24mm | CLM-10-RGx |
