Construction-Ball Pads

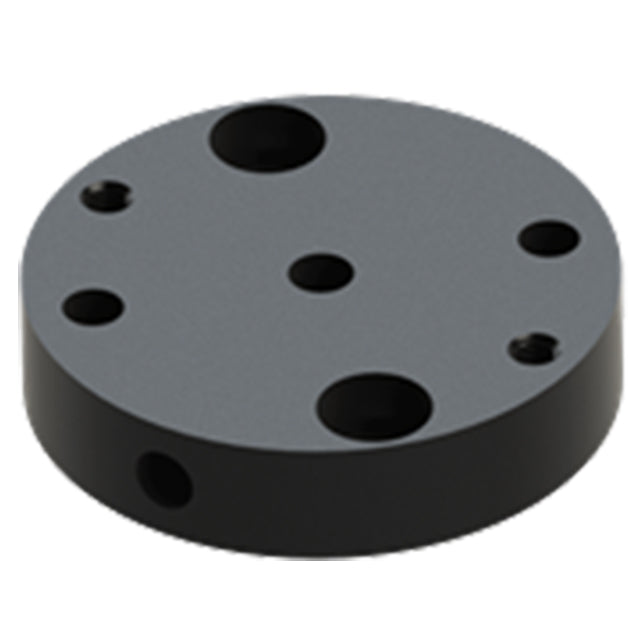

Precision round pad for mounting a Construction Ball. These round pads should be fastened with two socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-32 or M6x0.8 setscrew (not furnished) in the crosshole. Made in USA.
Installation
Bolt pad in position with two socket-head cap screws. After mounting, drill through the 15/64" holes and ream to 1/4" diameter, to install dowel pins for secure location.
Optional Cover
Two #10-32 tapped holes allow attaching the cover.
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 17-4PH Stainless Steel | - | Passivated | Yes | Yes | |
Parts Specification
| Anominal (mm) | Aactual (mm) | B (mm) | C±.012 (mm) | D (mm) | E (mm) | F (mm) | G | H (mm) | J (mm) |
| 10mm | 10.015 / 10.000mm | 58mm | 13mm | 44.5mm | 8mm | 19mm | M5 x .8 | 6.008 / 6.000mm | 48mm |
