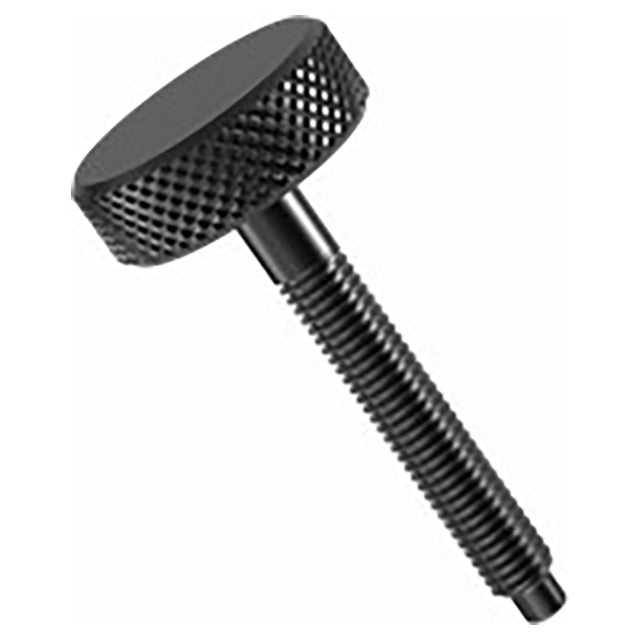

Knurled-Head Screws
High-quality thumb screw. Knurled head provides a positive grip for finger tightening in light clamping applications.
Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
Parts Specification
| A Thread (Inch) | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) |
| M5 inch | 0.8mm | 25mm | 19mm | 6.5mm | 6.5mm | 3.4mm | 2.7mm |
