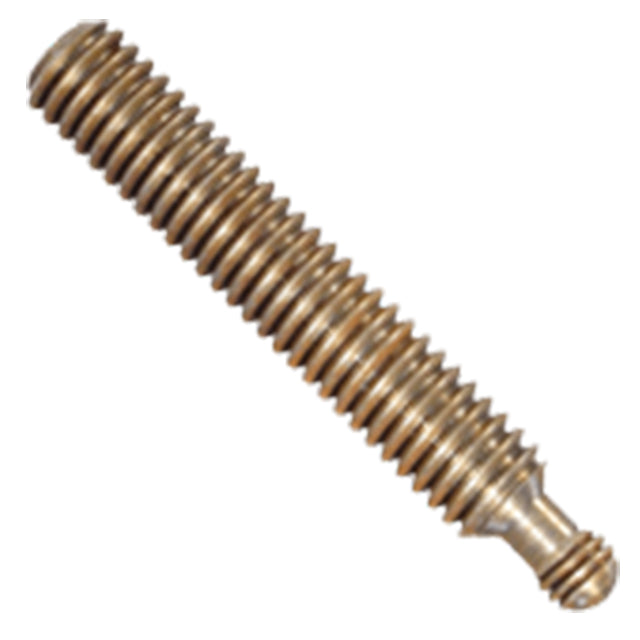

Bodies for Swivel Screw Clamps
High-quality clamping screw that accepts a wide assortment of swivel feet (order foot separately). Socket-head version allows applying strong clamping force using a hex wrench. Made in USA.
Swivel Foot
Swivel Head Screws use patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. Note: Delrin feet are not threaded-they snap on and off.
Design Considerations
For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.
Material
| Steel, Black Oxide Finish | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 or 1144 Steel | - | Black Oxide | Yes | Yes | |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Thread |
| M6 | 1mm | 3mm | 14mm | #8-36 LH |
