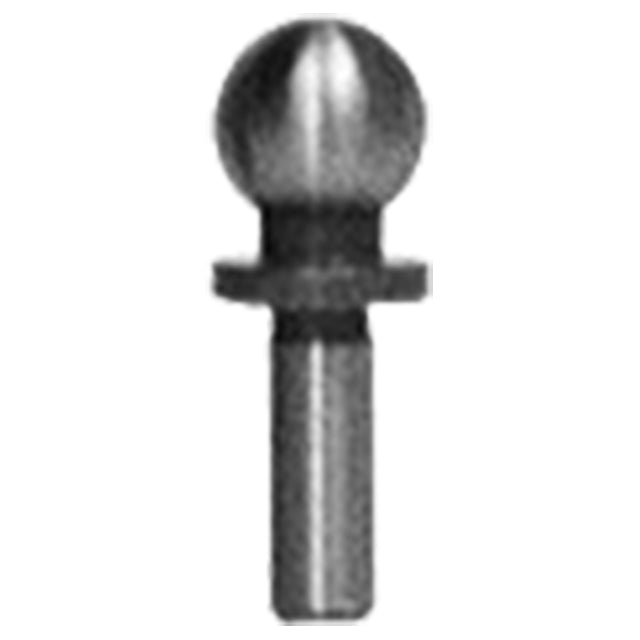

Construction Balls-Shoulder Type
Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002" TIR. Made in USA.
Application Information
Shoulder-Type Construction Balls provide a reference point in three dimensions.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel or equivalent | Heat Treated Rc 54-56. | - | Yes | Yes |
Parts Specification
| Ball Diameter Nominal (mm) | Ball Diameter Actual (mm) | A Diameter Nominal (mm) | A Diameter Actual (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | Style |
| 6mm | 6.005 / 5.994mm | 3mm | 3.000 / 2.990mm | 12mm | —mm | —mm | 6mm | 6mm | 1 |
