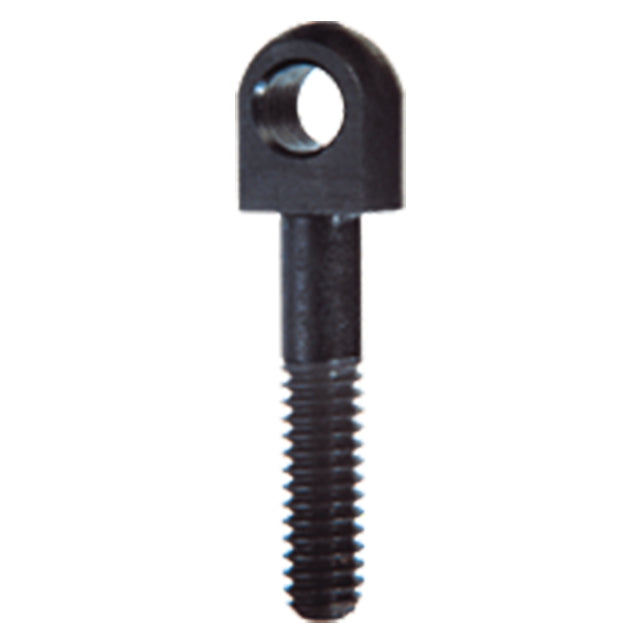

Swing Bolts
Shoulder-type eye bolt that can be used as a stationary hinge point. Reamed hole for smooth bearing.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Diameter (mm) | C (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) | H (mm) |
| M8 | 1.25mm | 8mm | 25mm | 40mm | 50mm | 16mm | 10mm | 15mm |
