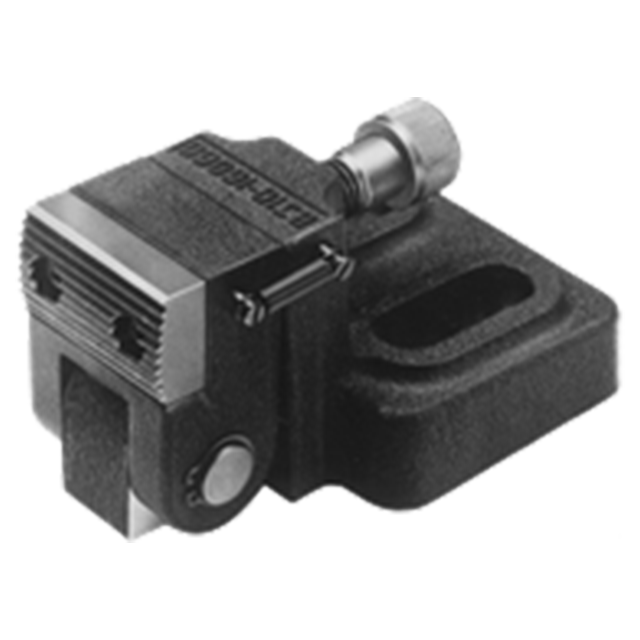

Pivoting Edge Clamps
Large edge clamp that is well suited for large castings and other tall workpieces. Pivoting nose has a serrated jaw that clamps forward and downward simultaneously. Can be used to clamp against a fixed locator, or against a matching Downthrust Backstop. The slotted base provides adjustability.
Material
| Item | Material | Heat Treat | Finish |
| Body | Grey Cast Iron,ASTM class 40 | - | Black Oxide |
| Jaw | 1045 Steel | Heat Treated Rc 40-45 | Black Oxide |
| Clamping Screw | High-carbon steel | Heat Treated | Black Oxide |
Parts Specification
| Mounting Screw Size | Maximum Horizontal Clamping Force (lbs) | Maximum Vertical Clamping Force (lbs) |
| 5/8-11 | 4200 lbs | 730 lbs |
