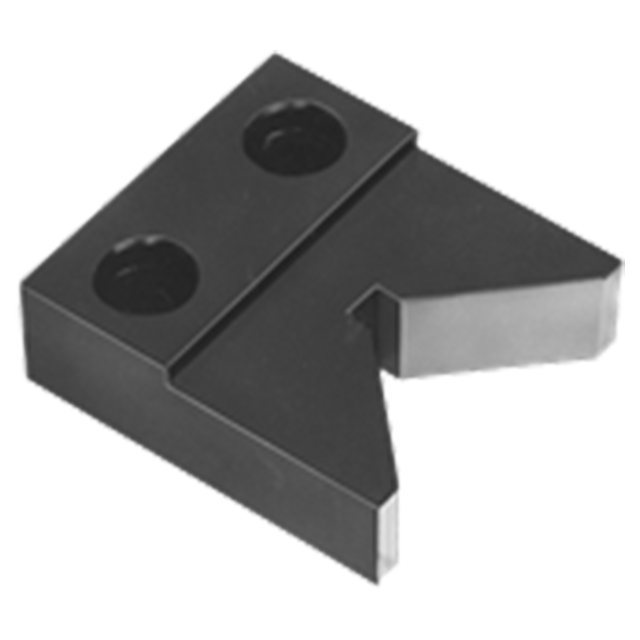

Vertical V Blocks
Ideal for holding a cylindrical workpiece in an exact location with its axis perpendicular to the tooling surface. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes.
Mounting
Fasten with two Locating Screws.
Material
| Item | Material | Heat Treat | Finish |
| Body | 1045 Steel | Heat Treated | Black Oxide |
| Bushing | High-Carbond Steel | Heat Treated | - |
Parts Specification
| Workpiece Diameter Range | A | B | C | E | Mounting Screw Size |
| 9/16 to 3-1/8 | 2-1/2 | 1.3951 | 3-1/4 | 1/2-13 | 1/2-13 |
