Cam Edge Clamps

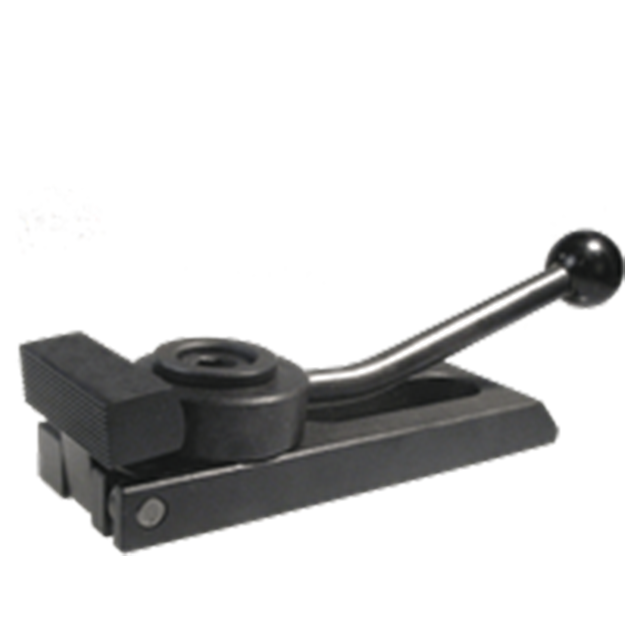

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. The slotted base provides adjustable clamp location, ideal for mounting on modular tooling plates. Choice of clockwise or counterclockwise handle movement to clamp.The Cam Edge Clamps are for Standard System MF40 (slot for 1/2-13 mounting screw).
Application Information
Nose pivots to exert clamping force forward and downward at the same time.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel components with hardened wear surfaces | - | Black Oxide | ✔ | ✔ |
| Ball Knob | Black phenolic plastic | - | - | ✔ | ✔ |
Parts Specification
| A | Clamping Direction | B | C | D | E | F | G | H | K Min | K Max | L | M | N | P | Maximum Horizontal Clamping Force (lbs) | Maximum Vertical Clamping Force (lbs) |
| 1/2-13 | Clockwise | 7/32 | 1-9/16 | 5-3/4 | 2-1/2 | 5/8 | 1-1/2 | 6 | 1-5/16 | 1-1/2 | 1-7/8 | 1 | 2-15/16 | 2 | 1500 lbs | 100 lbs |
