Fixture Locating Pins

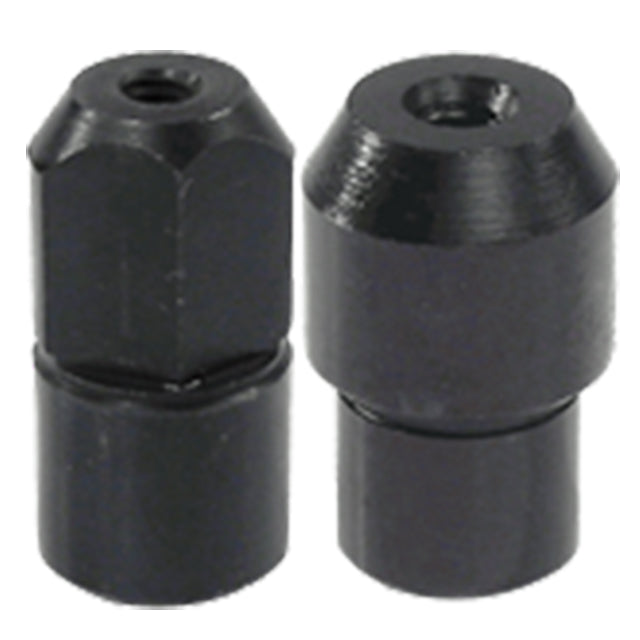

These round and diamond pins are used together to locate Quick-Change Tooling Plates or vises on a modular tooling plate or block. Use one round locating pin and one diamond locating pin for precise location without binding. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| Size (Inch) | Head Diameter (Inch) | Shank Diameter |
| Standard | 0.6250" | 0.5000" |
