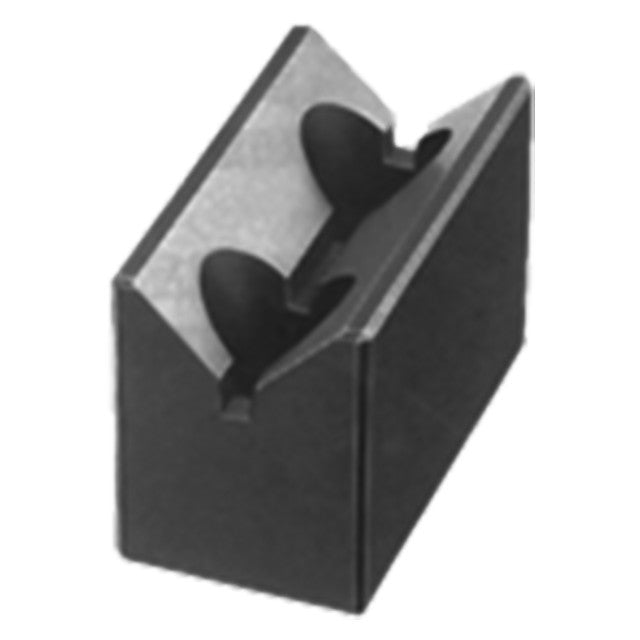

Extremely versatile locator for cylindrical workpieces. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes.
Application Information
To locate a workpiece from two different diameters simultaneously, use Height Shims and/or Multipurpose Riser Blocks to raise one V block to the proper level.
In this example, Support Cylinders are used as end stops for shafts located in Horizontal V Blocks.
Mounting
Fasten the small size with two Locating Bushings and two Socket-head Cap Screws. Fasten the large size with two Locating Bushings and four Socket-Head Cap Screws.
Material
| Item | Material | Heat Treat | Finish |
| Body | 1045 Steel | Heat Treated | Black Oxide |
| Bushing | High-Carbond Steel | Heat Treated | - |
Parts Specification
| Size | Workpiece Diameter Range | A (Inch) | B (Inch) | G (Inch) | H (Inch) | Mounting Screw Size |
| Large V | 9/16 to 2 | 1-1/2" | .7500" | 1-3/4" | 1-3/4" | 5/16-18 |
