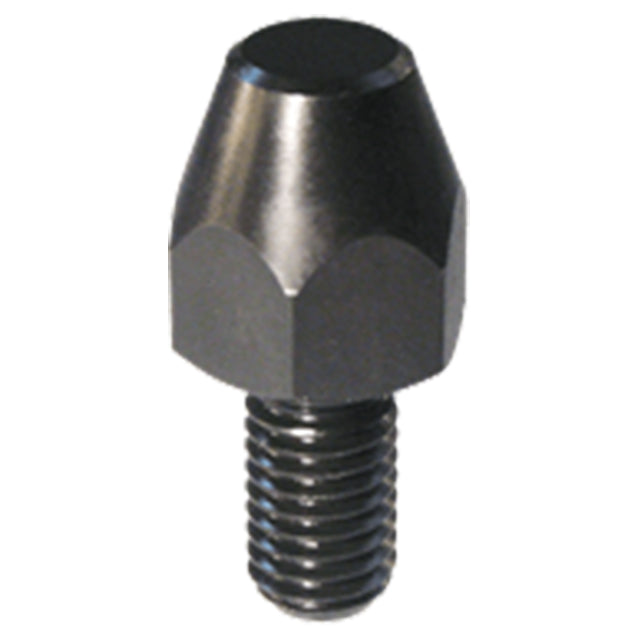

Screw Rest Pads
Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E Nominal (Inch) | E Actual (Inch) | Yes |
| 5/16-18" | 3/4" | 5/8" | 5/16" | 1/4" | 0.2500" | 75° |
