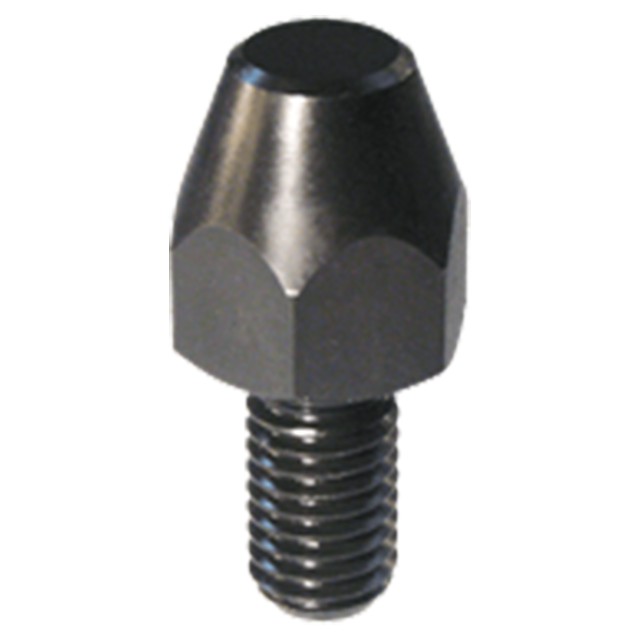

Screw Rest Pads
Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F |
| M12 | 1.75mm | 19mm | 24mm | 12mm | 25mm | 20° |
