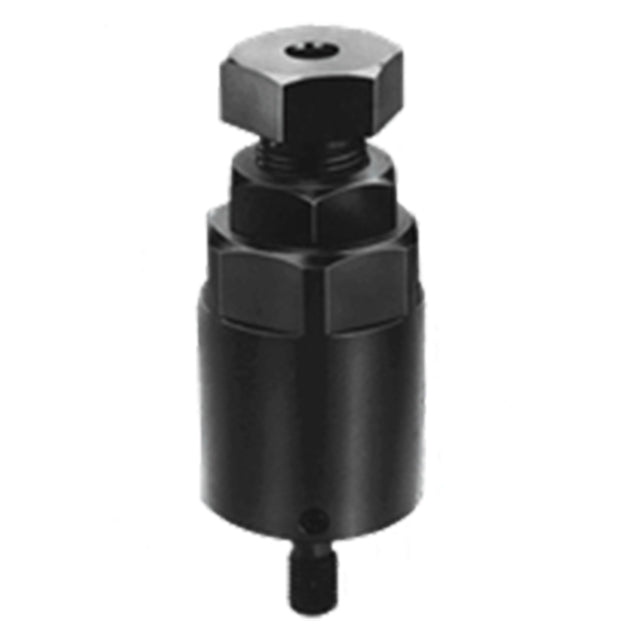

Heavy-Duty Screw Jacks
Heavy-duty adjustable support that accepts any of three different tips.
Application Information
Heavy-Duty Screw Jacks are available in three heights.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Jack Screw | 4135 Steel | Heat Treated | Black Oxide | Yes | Yes |
| Body | 1045 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| G Threaded Mounting Stud | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | D Diameter (mm) | E (Inch) | F (Inch) |
| M12 | 1.75mm | 41.5mm | 9.5mm | 32mm | 40mm | 1-7/16" | 1-5/16" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
