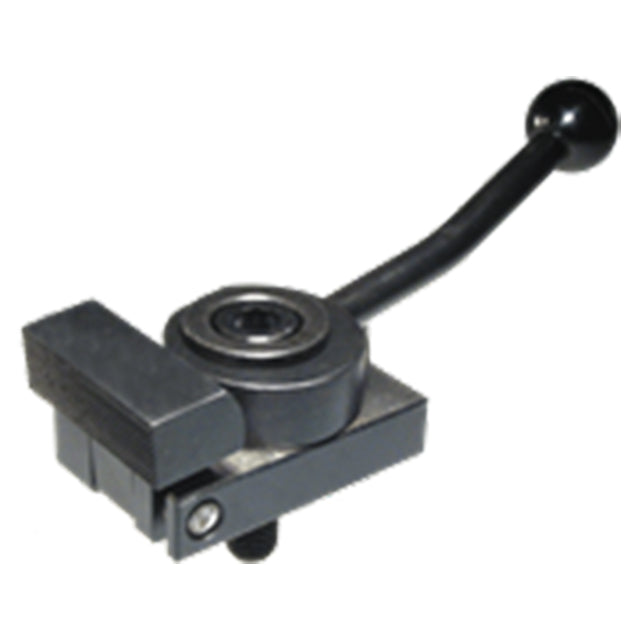

Cam Edge Clamps-Fixed Base
Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. Choice of clockwise or counterclockwise handle movement to clamp.
Application Information
Nose pivots to exert clamping force forward and downward at the same time.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel components with hardened wear surfaces | - | Black Oxide | Yes | Yes |
| Ball Knob | Black phenolic plastic | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Clamping Direction | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K Min (mm) | K Max (mm) | L (mm) | M (mm) |
| M8 | 1.25mm | Clockwise | 4mm | 28.5mm | 100mm | 41.5mm | 11mm | 24mm | 44.5mm | 8mm | 22mm | 25.5mm | 32mm | 19mm |
