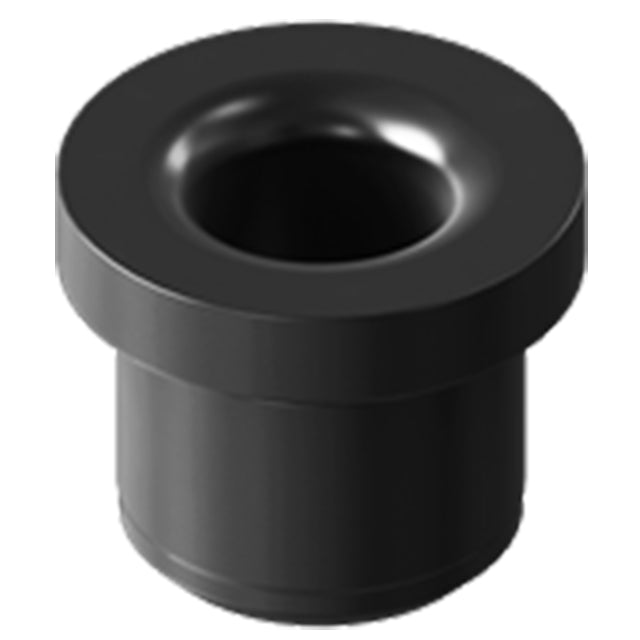

Bushings for Bullet-Nose Dowels
Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Made in USA.
Application Information
Material
1144 steel, Heat Treated Rc 50-55, black oxide finish. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Diameter (Inch) | C Diameter Nominal (Inch) | C Diameter Actual (Inch) | D (Inch) | E (Inch) |
| 5/16" | 0.3126" | 0.625" | 1/2" | 0.5002" | 3/8" | 0.100" |
