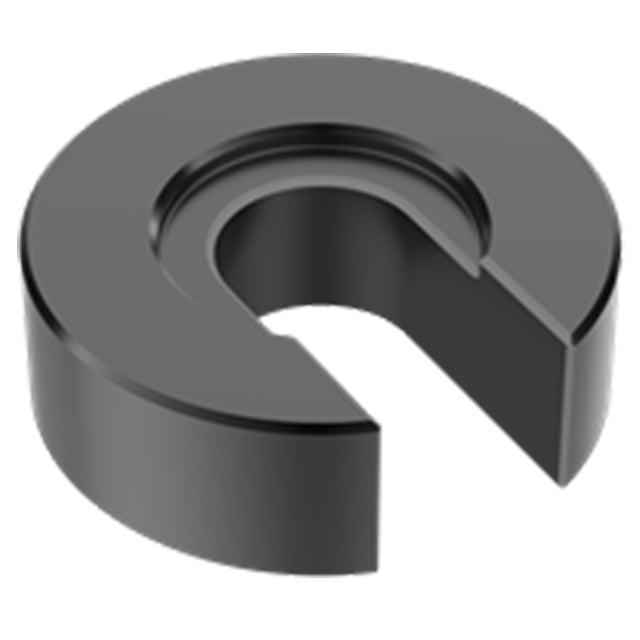

C Washers
Washer that slides in and out of position for clear loading. Can be used with a nut, or by sliding it into a radial groove on a drawbar.
Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | Yes | Yes | |
Parts Specification
| Bolt Size | A Diameter | B | C | D Diameter |
| 5/8 or M16 | 2-1/8 | 3/8 | 21/32 | 1-3/32 |
