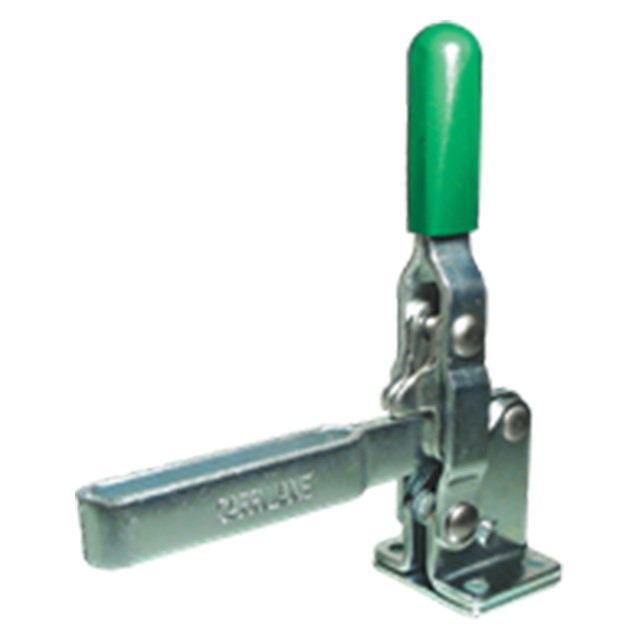

Toggle Clamps
Open Arm, Flanged Base
Simple, easy-opening toggle clamps with extra arm reach. These low-arm clamps extend farther over the workpiece than any other toggle clamp their size. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 625 lbs. holding capacity.
Clamping Action
Clamped Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 1000lbs. | 2.5lbs. |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
