Double-End Gooseneck Clamp Straps
Gooseneck version of Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90 Degree for clear loading. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

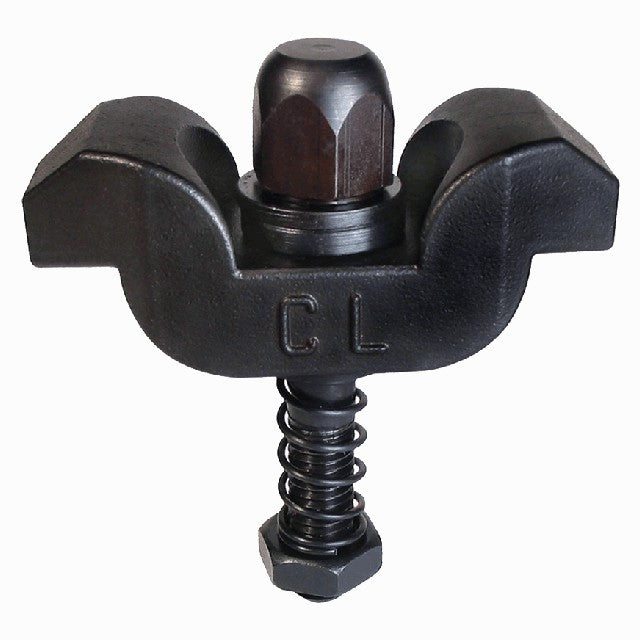

Assembly with Acorn Nut & Spherical Washer
Acorn Nut
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| Alloy Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | B | C | D | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Acorn Nut | Spherical Washer |
| 1/2-13 | 0.79 | 1.58 | 3.94 | CL-842-GCS | CL-9-SPG | CL-2-FW | CL-1/2-13X4.00-STUD | CL-8-JN | CL-2-AN | CL-3-SW |
