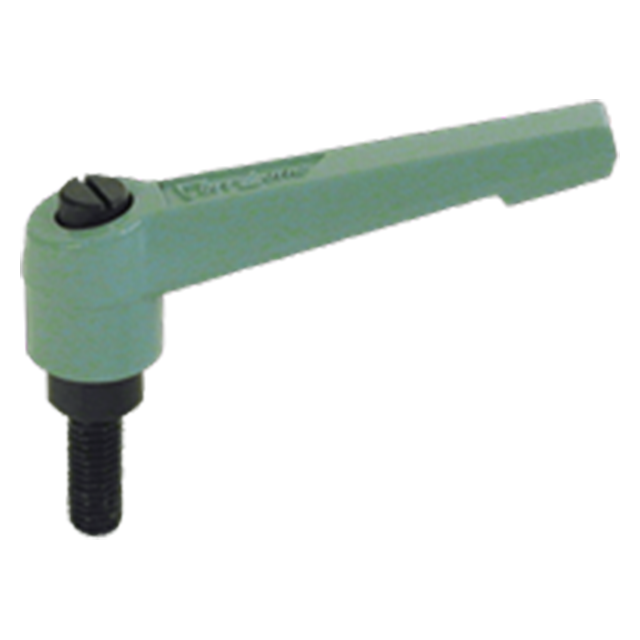

Adjustable Handle
Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism.
Operation
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
Material
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Handle | Zinc Die Casting | Yes | Enamel Paint | Yes | Yes |
Body,Screw & Spring | Mild Steel | Yes | Black Oxide Finish | Yes | Yes |
Parts Specification
Size | E Thread (Inch) | F (Inch) |
Yes | 1/2-13" | 1-1/2" |
