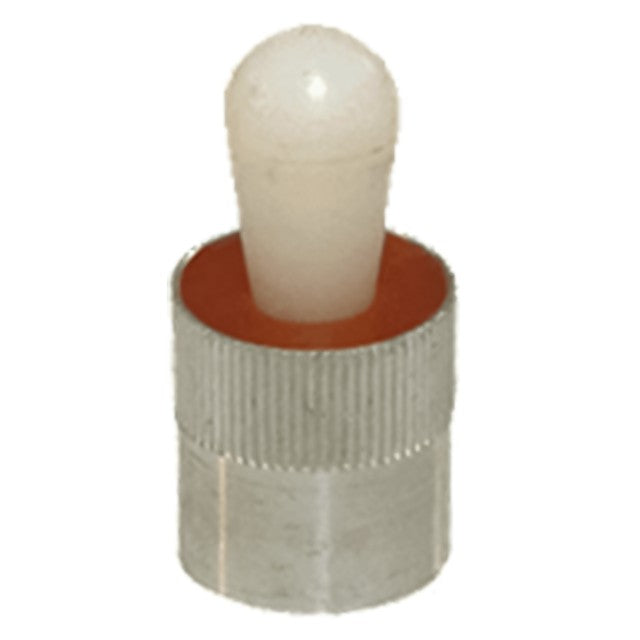

Spring Locating Pins-Delrin Pin
Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version has a Delrin contact pin and a solid polyurethane body covered by an aluminum shell. This type is ideal to avoid marring soft materials or finished surfaces. Choice of light or medium force in each size.
Application Information
Distance to Workpiece Calculator
This calculator is used to determine the appropriate distance to install a spring locating pin from a workpiece.
Application Examples
Spring Locating Pins can also be used as grippers for light clamping.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Pin | White Delrin 500 | - | - | Yes | Yes |
| Body | Solid polyurethane | - | - | Yes | Yes |
| Housing | Aluminum | - | - | Yes | Yes |
Parts Specification
| A Diameter (inch) | Approx Side Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | X Dim When Y Equals 1/16 | X Dim When Y Equals 1/8 | X Dim When Y Equals 3/16 | X Dim When Y Equals 1/4 | X Dim When Y Equals 5/16 | X Dim When Y Equals 3/8 | X Dim When Y Equals 7/16 | X Dim When Y Equals 1/2 Or More |
| 1/2" | 22.2 lbs. | 0.315" | 0.515" | 0.553" | 0.073 | 0.081 | 0.089 | 0.096 | 0.104 | 0.110 | 0.110 | 0.110 |
