Product Information

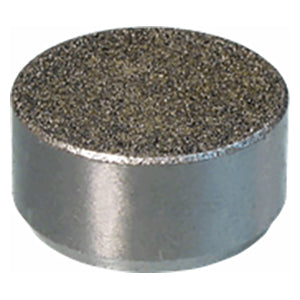

Round Grippers are replaceable inserts that provide additional holding force and/or wear resistance. The grippers shown here have an abrasive-diamond surface permanently fused to a hardened stainless steel pad. This abrasive surface, comparable to a 100-grit abrasive, provides significant holding force with relatively low clamping pressure and minimal surface marring. This diamond-particle surface also offers excellent wear resistance. The gripper body is made of hardened stainless steel for high strength and excellent corrosion resistance. Available in diameters from 3/8 to 1" (10mm to 25mm in metric). Made in USA.
Installation
Fasten from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 17-4 Stainless Steel | Heat treated Rc 43-46 | Permanently fused abrasive-diamond surface | ✔ | ✔ |
Parts Specification
| Part Number | A DIA | B | C THREAD | D |
| CL-8-RGD | 1/2 | 3/8 | #10-32 | 3/16 |
