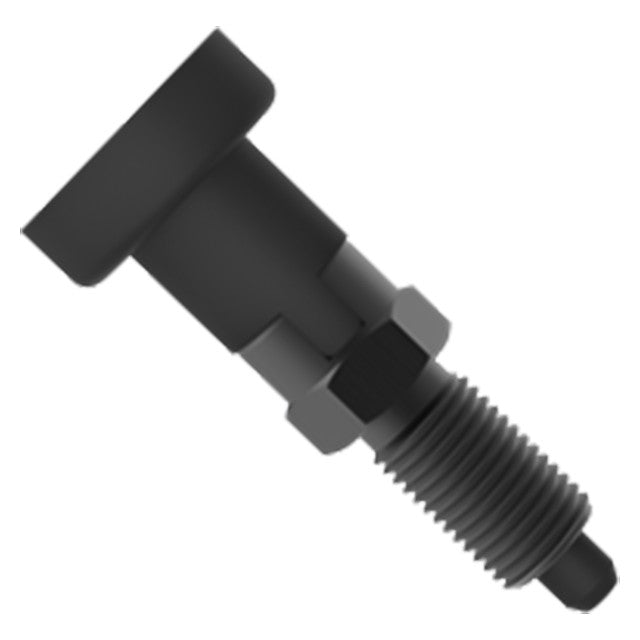

Hand-Retractable Plungers-Knob Handle
Precision indexing plunger with a attractive knob handle for convenient retraction. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger. Tip has a slight taper for easy alignment.
The locking type has a spring-loaded plunger that locks in retracted position. To lock, pull the knurled knob back and turn 90°. Body is notched at 90° to keep the knob in its retracted position.
Material
| Stainless Steel | ||||
| Item | Material | Heat Treat | Finish | RoHS |
| Knob | Stainless Steel | - | - | Yes |
| Plunger | Stainless Steel | - | - | Yes |
| Body | Stainless Steel | - | - | Yes |
| Jam Nut | Stainless Steel | - | - | Yes |
Parts Specification
| A Thread | B Diameter Nominal | B Diameter Actual (inch) | C (inch) | D (inch) | E (inch) | F Diameter (inch) | G (inch) | J | L (inch) | Initial End Force (lbs) | Final End Force (lbs) |
| 1/2-13 | 6mm | 0.2354/.2346" | 0.24" | 0.79" | 0.67" | 0.98" | 0.24" | 14mm | 1.85" | 1.8 lbs. | 4.7 lbs. |
