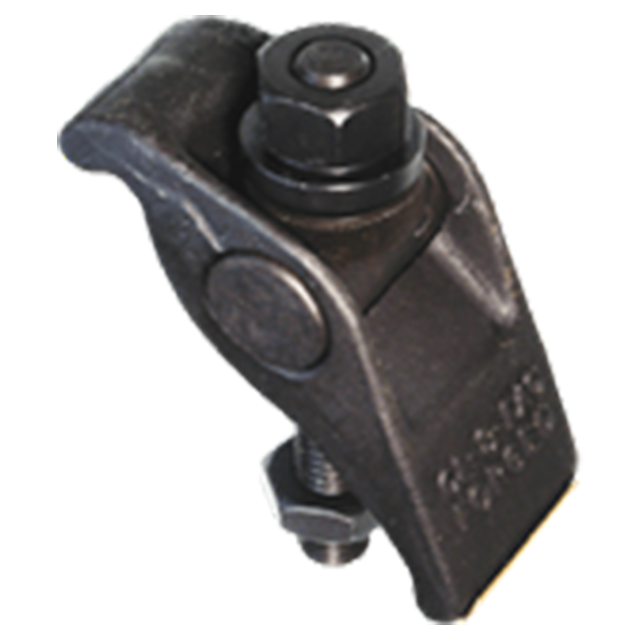

Forged Adjustable Clamps
Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects tooling plate. The Forged Adjustable Clamps are for Standard System MF40 (1/2-13 stud size).
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Forged 1045 Steel | - | Black Oxide | ✔ | ✔ |
| Pivot | Mild Steel | - | Black Oxide | ✔ | ✔ |
| Removable Heel Pad | Brass | - | - | ✔ | ✔ |
Parts Specification
| Stud Size | Clamping Height | A | B | C | D | E | F | G |
| 1/2-13 | O to 2-1/16 | 9/16 | 4 | 1-5/8 | 1-1/8 | 1-7/16 | 1-7/16 | 2-5/16 |
