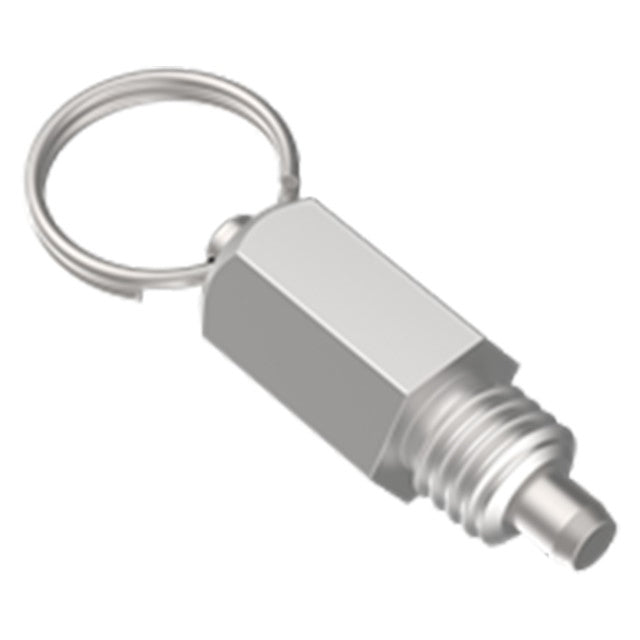

Hand-Retractable Plungers-Pull Ring
This unique, quick-release pull pin positively locks in extended position. The hand-retractable plunger tip automatically locks in the forward position unless manually disengaged by pulling the ring, rather than being held forward by spring force. Slight taper on plunger tip for easy alignment. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | Mild Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body | Mild Steel | Zinc Plated Clear Chromate | - | Yes | Yes |
| Spring | Spring Steel | - | - | Yes | Yes |
Parts Specification
| Body Thread | End Force | Plunger Diameter (inch) | Plunger Length (inch) | Body Length (inch) | Ring Diameter (inch) | Body Hex (inch) |
| 1/2-13 | Locked | 0.250" | 0.28" | 1.40" | 1.00" | 5/8" |
