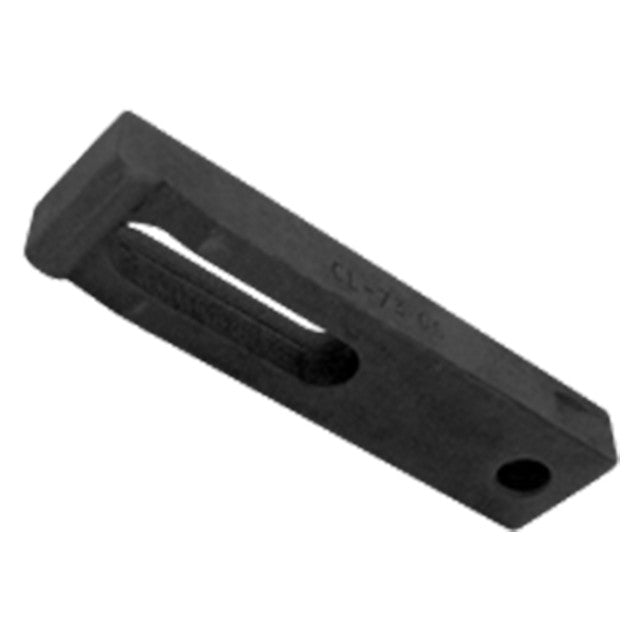

Tapped-Heel Clamp Straps
Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, or an adjustable rear support.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K Thread (Inch) |
| 1/2-13" | 5/8" | 1-1/4" | 4" | 1-21/32" | 1-3/16" | 13/32" | 1/2" | 17/32" | 1/2-13" |
