Product Information

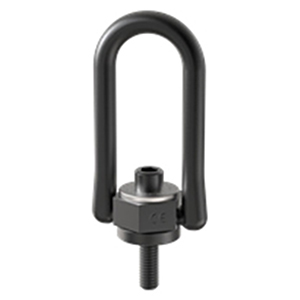

A long-ring version of our Forged Swivel Hoist Rings features a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs and a 5:1 safety factor, many with a choice of bolt length. Complies with ASME B30.26, CEN/TC 168 Reference EN 1677-1: 2000 Part 1 and 2006/42/EC.
Application Information_1
Forged Swivel Hoist Rings can be easily disassembled. One benefit of this is easier cleaning. Disassembly also allows adding a lifting hook, as shown in this example, for use when lifting with a sling.
Technical Information
Complies with ASME B30.26 Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings
| Item | Material | Head Tread | Stud |
| Body Ring Bushing | 4140 Steel | Head Treaded | Black Oxide |
| Washer | 17-4PH | H900 | Passivated |
| Manufacturer Part Number | CL-7000-FSHR-1-LR |
| Thead Size (Inch) | 3/4"-10 |
| Product Type | Forged Swivel Hoist Ring |
