Coil Spring

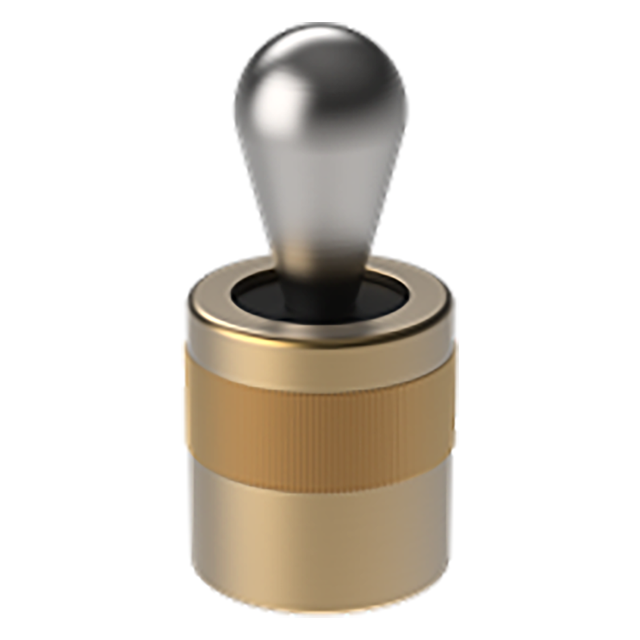

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version, with a case-hardened Steel contact pin and a coil spring, is the most popular. A protective rubber seal around the contact pin keeps out dirt and chips. This type has the most travel, so it allows the most part-size variation.
Application Information
Distance to Workpiece Calculator
This calculator is used to determine the appropriate distance to install a spring locating pin from a workpiece.
Application Examples
Spring Locating Pins can also be used as grippers for light clamping
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Pin | Mild Steel | Carbuized-Hardened | Zinc Plated clear chromate | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| Housing | Aluminum | - | - | Yes | Yes |
| Seal | Rubber | - | - | Yes | Yes |
Parts Specification
| A Diameter (Inch) | Approx Side Force (lbs) | B Diameter (Inch) | C (Inch) | D (Inch) | X Dim When Y Equals 1/16 | X Dim When Y Equals 1/8 | X Dim When Y Equals 3/16 | X Dim When Y Equals 1/4 | X Dim When Y Equals 5/16 | X Dim When Y Equals 3/8 | X Dim When Y Equals 7/16 | X Dim When Y Equals 1/2 Or More (Inch) |
| 7/16" | 4.5 lbs | 0.197" | 0.236" | 0.430" | 0.029 | 0.037 | 0.039 | 0.039 | 0.039 | 0.039 | 0.039 | 0.039" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
