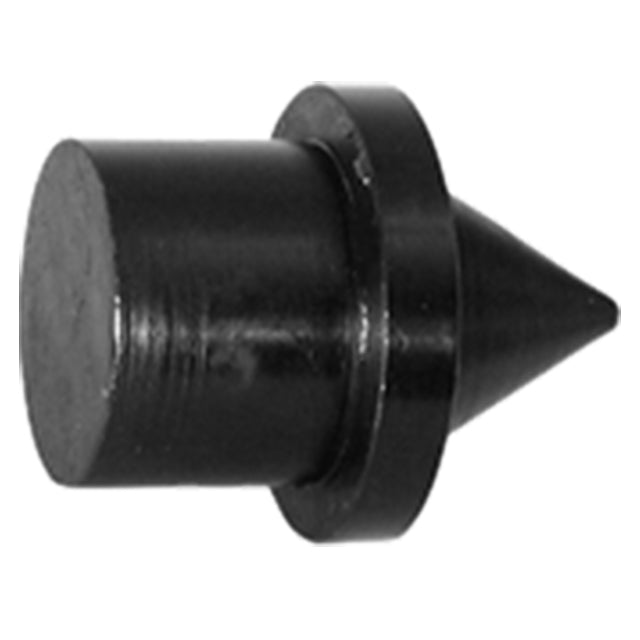

Cone Locator Pins
Medium-accuracy tapered locating pin used with the mating bushing shown below. These pins can be used for quick assembly of two fixture pieces, because they compensate for considerable misalignment. The pin's shank diameter and the bushing's OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | Gap Between Pin & Bushing Heads When Assembled (Inch) |
| 1" | 3/4" | 0.7515" | 3/16" | 9/16" | 1/2" | 0.676" | 0.043-.061" |
