Cone Locator Bushings

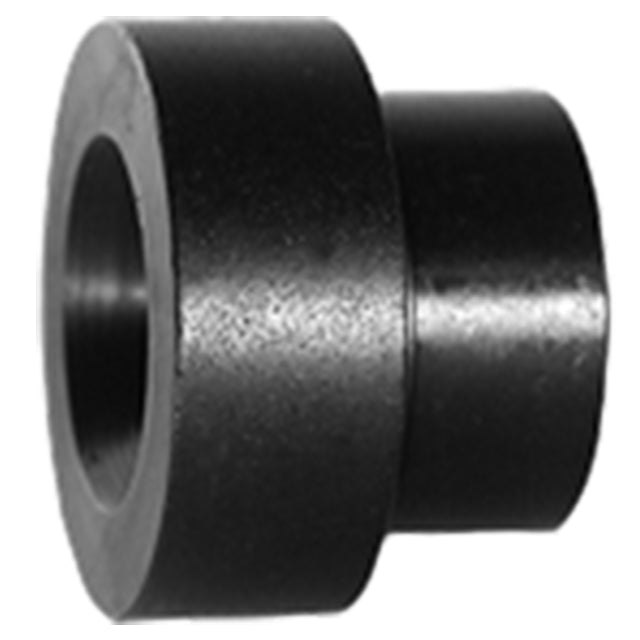

Mating bushing used with a Cone Locator Pin to align two pieces of a fixture. The pin's shank diameter and the bushing's OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 12L15 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | Gap Between Pin & Bushing Heads When Assembled (Inch) |
| 1" | 3/4" | 0.7515" | 3/8" | 3/8" | 0.616" | 0.043-.061" |
