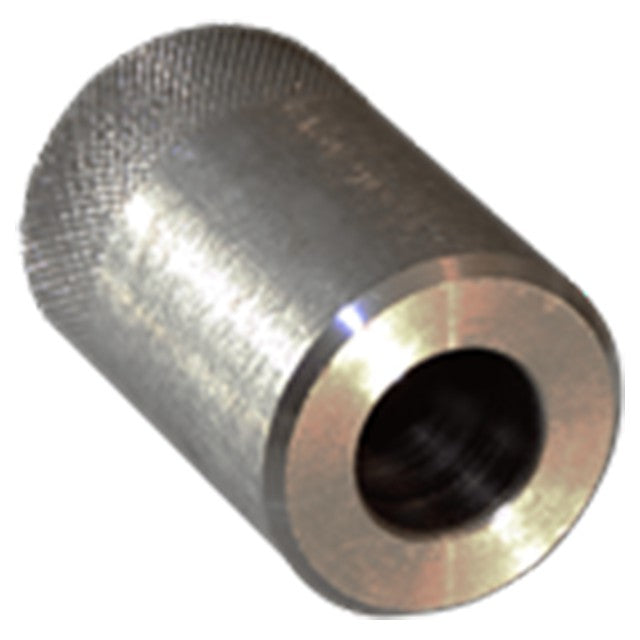

Ball Lock Receiver Caps
Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance. The Receiver Cap's inside diameter fits the Ball Lock Pin exactly, and is stepped to provide a perfect locking surface for the balls. Please note that using a Receiver Cap reduces the Ball Lock Pin's effective grip length (see D dimension for reduction in grip length). Made in USA.
Application Information
Ball Lock Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance.
Optional Cable
Receiver Cap is tapped to allow fastening the terminal end of a standard Ball Lock Pin cable assembly, CL-82-KA-12.0 (12.0" long), and includes a fastening screw.
Material
300-series Stainless Steel, passivated. DFARS and RoHS compliant.
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 7/16" | 0.75" | 1.16" | 1/2" | #10-32" |
