Safety Lock
Fixed Open Arm, Flanged Base

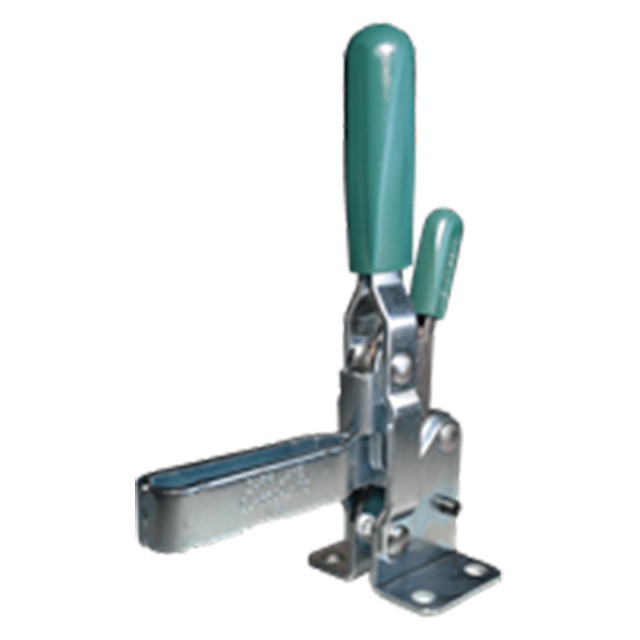

Safety-lock version of the CL-650-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.
Arm opens 106° while handle moves 58°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location.
Clamping Action
Clamped Position
Press Lever to Unlock
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.0 |
| Open Arm, Flanged Base | 750lbs. | 1.3 |
