Toggle Clamps

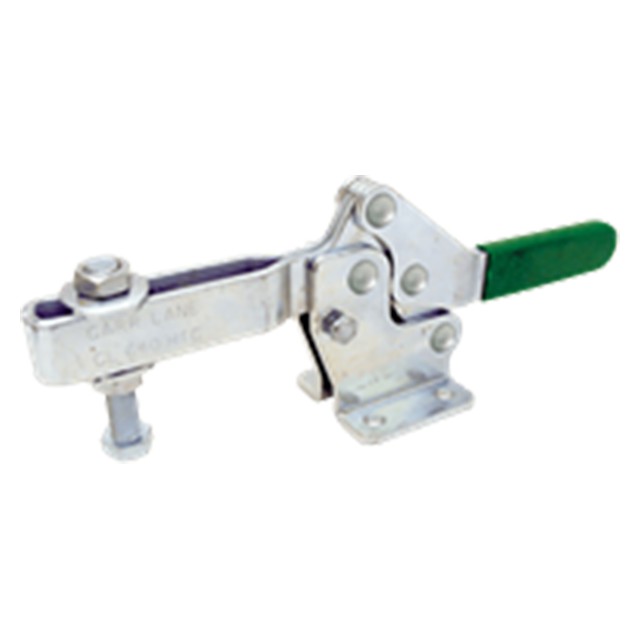

Open Arm, Flanged Base
Largest and strongest horizontal-handle hold-down clamp. Arm opens 105° while handle moves 75°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location.
Clamping Action
Clamped Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 1000lbs. | 3.3lbs. |
