Round Locating Pins, DIN 6321, Type C

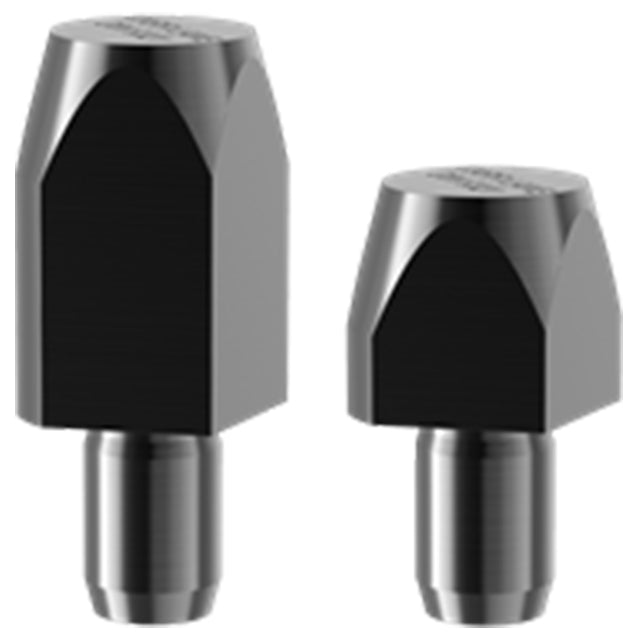

Diamond Locating Pins per DIN 6321 Type C also have a ground head diameter for use as a hole locator, but are relieved to locate in only 1 axis. One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two machined holes in a workpiece, or to align two pieces of a fixture, without binding. Head and shank diameters are concentric to within .0005" TIR. Made in USA.
Application Information
In this application, a Round Locating Pin (Type B, tall version) is used together with a Diamond Locating Pin (Type C, short version) to locate from two holes in a workpiece. Using a taller round pin allows smoother loading because that pin's hole can be fully engaged first, making it easier to engage the second hole.
Material
| Material | Heat Treat | Finish |
| A2 Tool Steel | Heat Treated | Black Oxide |
Parts Specification
| A Diameter (mm) G6 | Version | B (mm) | C (mm) | D Diameter (mm) N6 | E (mm) | F (mm) |
| 10mm | Tall | 18mm | 9mm | 6mm | 6mm | 2.5mm |
