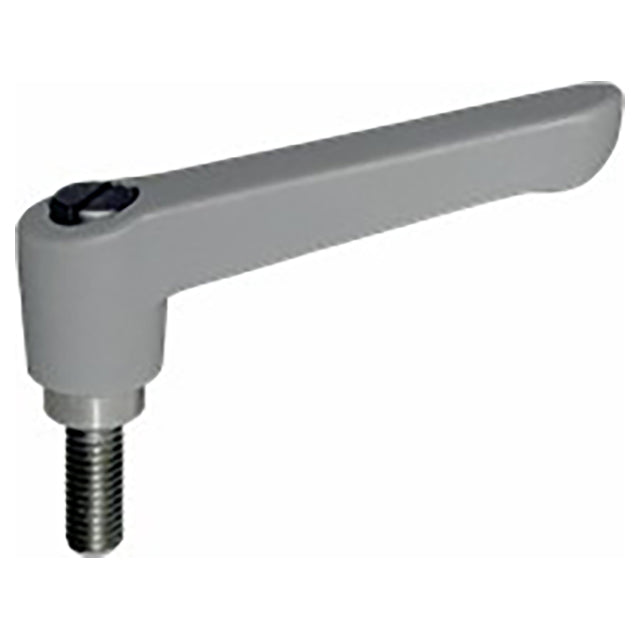

Adjustable Handle
Stainless steel adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. These handles are incredibly strong, featuring a unique stainless steel spline inlay molded into the plastic handle. This provides positive metal-to-metal mating with the serrated body, for high clamping torque.
Application Information
Operation
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle | Metallic gray fiber-reinforced thermoplastic | Yes | 300-Series Stainless Insert | Yes | Yes |
| Body,Screw & Spring | 300-Series Stainless Steel | Yes | Yes | Yes | Yes |
Parts Specification
| Size | E Thread (Inch) | F (Inch) |
| 3 | 3/8-16" | 2.48" |
