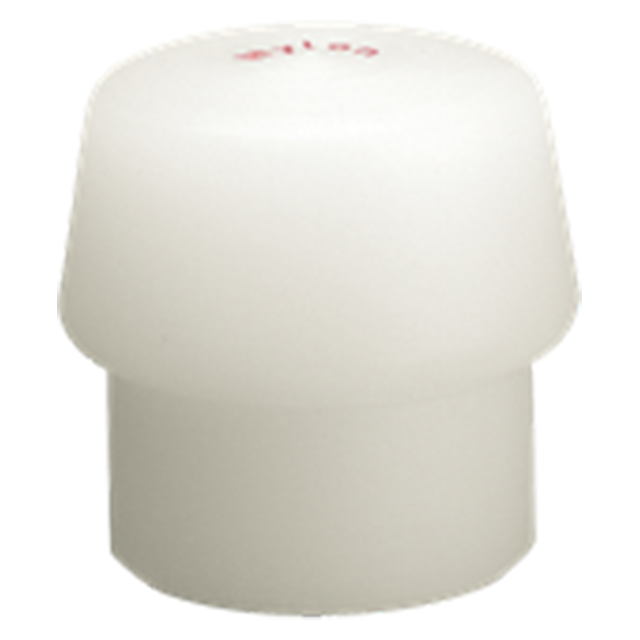

Simplex Hammers – Type F Inserts: White Nylon (Hard)
White nylon inserts for Simplex Hammers are hard, grease and oil resistant, highly elastic, and have superior strike effectiveness. Applications include assembly operations, metalworking, tooling, automotive assembly and repair work, joining of workpieces, sheet metal working, dent removal, mold construction, assembly of sharp-edged workpieces, and scaffold construction.
Application Information
Simplex Hammer System
Design your own custom hammers. Simplex soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. Choose the same type of insert for both sides, or build a multi-purpose hammer with a different type of insert for each face. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Type F Inserts | Nylon | - | natural white color, hard, hardness 68-78 Shore D | Yes | Yes |
Parts Specification
| Hammer Size (Face Diameter) | Tightening Torque (ft-lbs) Wooden Handle (Inch) | Tightening Torque (ft-lbs) Fiberglass Handle (Inch) |
| 60mm (2.36) | 30 FT-LBS | 44 FT-LBS |
