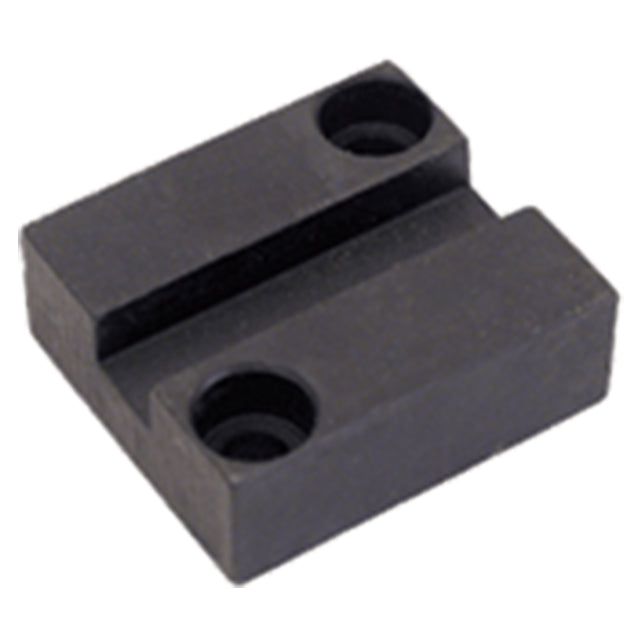

Guide Blocks
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Clamp-strap Stud Size | A | B | C | D | E | F | G Mounting Screws | H | J |
| 1/2-13 or M12 | 0.390 | 0.12 | 5/8 | 1-1/2 | 1/4 | 1-11/16 | 1/4-20 or M6 | 1 | 1-3/16 |
