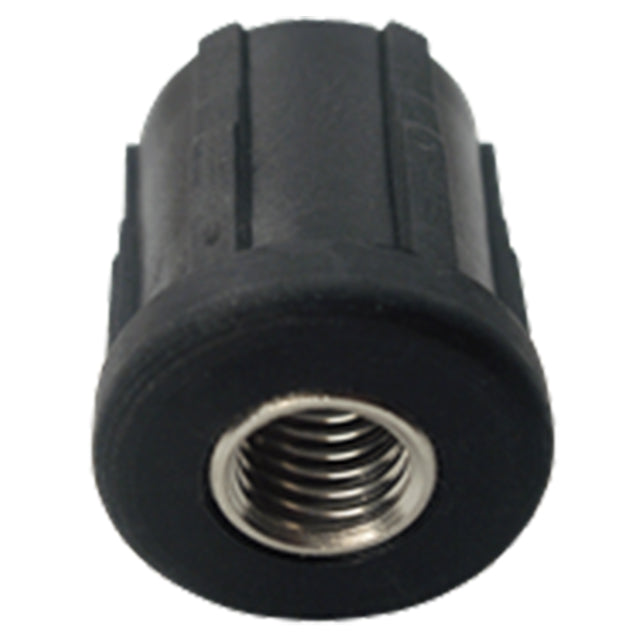

Threaded Tube Ends
Ideal for mounting a Leveling Foot into the end of a round tube. High-strength ribbed design presses into the tube end, up to the shoulder, providing 1100 lbs load capacity.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Black nylon thermoplastic | - | - | Yes | Yes |
| Threaded Insert | Brass | - | Molded in Brass | Yes | Yes |
Parts Specification
| Tubing External Diameter (Inch) | Tubing Wall Thickness (Inch) | A Thread (Inch) | B Diameter (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | Load Rating (lbs) |
| 1.50" | 0.065 / 0.070" | 3/8-16" | 1.50" | 1.40" | 1.70" | 1.34" | 1100 lbs |
