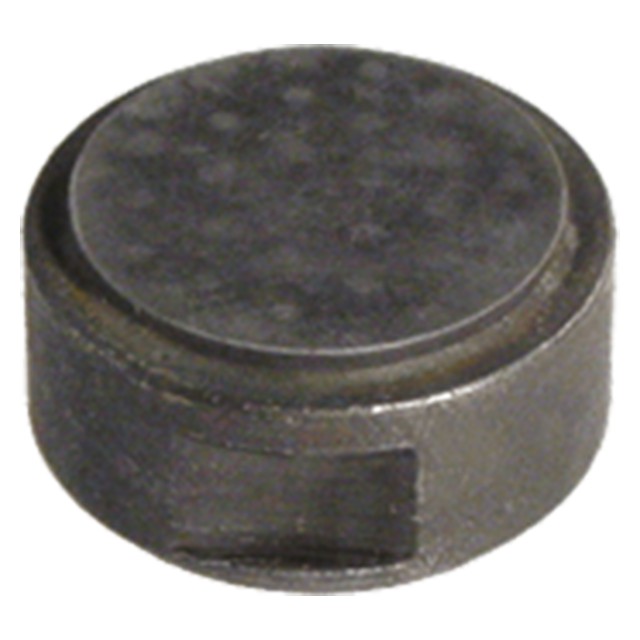

Round Grippers
Flat are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. Made in USA.
Installation
These tapped Round Grippers can be fastened from behind with a socket-head cap screw, or clamped with a setscrew on the O.D. locking flat (hardened steel and Delrin grippers do not have a locking flat). Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated, with brazed carbide insert | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B (Inch) | C Thread (Inch) | D (Inch) | E (Inch) | F (Inch) | G Diameter (Inch) |
| 3/8" | 3/8" | #10-32" | 3/16" | 3/16" | 11/64" | 5/16" |
