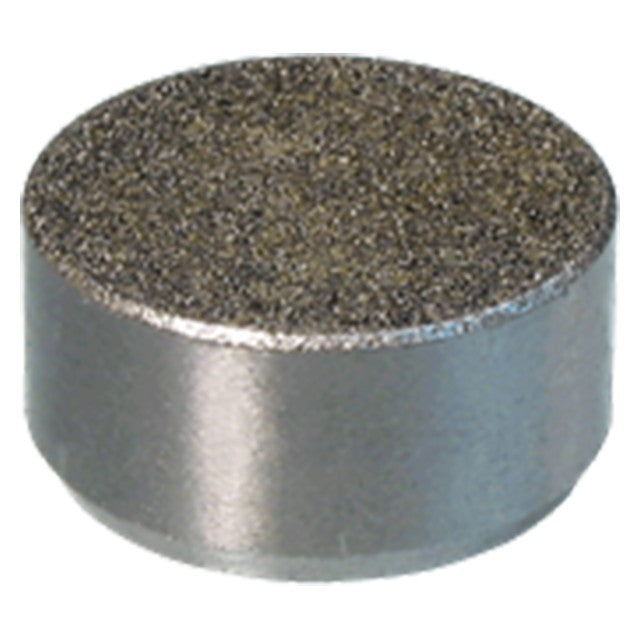

Round Grippers
are replaceable inserts that provide additional holding force and/or wear resistance. The grippers shown here have an abrasive-diamond surface permanently fused to a hardened stainless steel pad. This abrasive surface, comparable to a 100-grit abrasive, provides significant holding force with relatively low clamping pressure and minimal surface marring. This diamond-particle surface also offers excellent wear resistance. The gripper body is made of hardened stainless steel for high strength and excellent corrosion resistance. Made in USA.
Installation
Fasten from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 17-4 Stainless Steel | Heat Treated Rc 43-46 | Permanently fused abrasive-diamond surface | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B (Inch) | C Thread (Inch) | D (Inch) |
| 3/8" | 3/8" | #10-32" | 3/16" |
