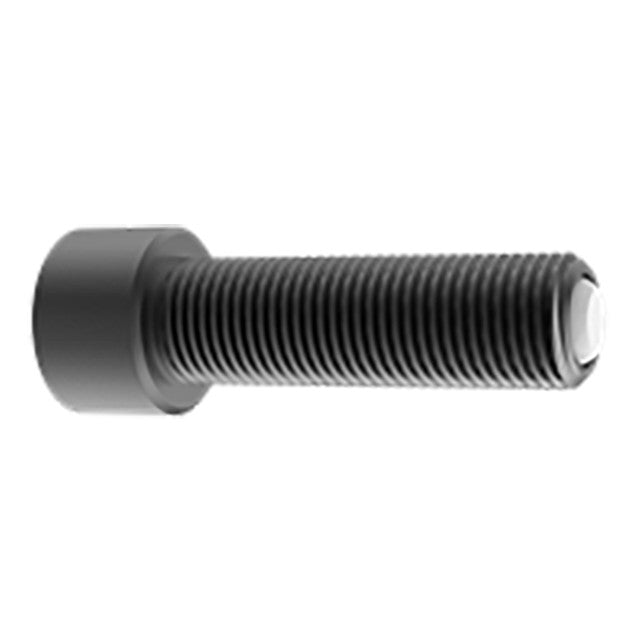

Ball-End Thrust Screws-Swivel Ball
Ball-End Thrust Screws are heavy-duty screw clamps with a ball contained in the end. These thrust screws have a large head and large hex-socket for excellent strength. Made in USA.
Material
| Item | Material | Heat Treat | Finish |
| Body | Alloy Steel | Yes | Black Oxide |
| Ball | Delrin 500 | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) | H Diameter (Inch) |
| 3/8-16" | 2.03" | 3" | 1/4" | 0.38" | 0.56" | 5/16" | 0.16" |
