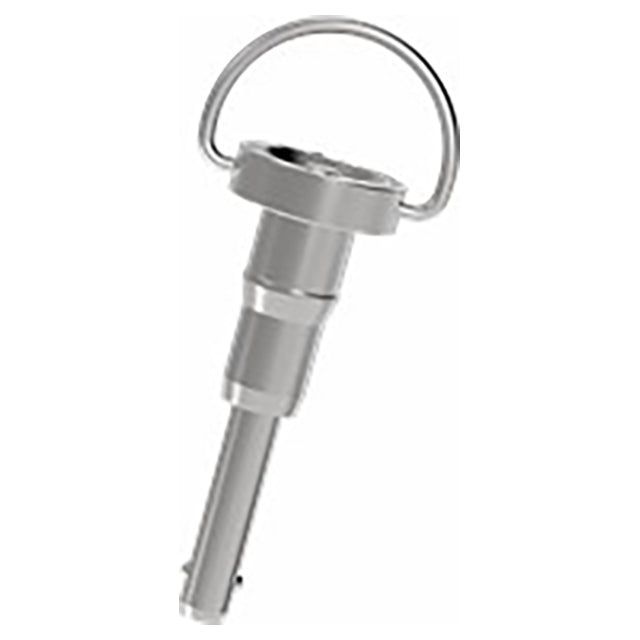

Heavy-Duty Ball Lock Pins
Ring Handle are similar to our standard single-acting Ball Lock Pins, except they are available only in stainless steel, and have a larger, heavier handle for rough service. Handles are made of solid stainless steel for maximum impact strength, and are specially shaped to prevent accidentally pressing the release button. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Made in USA.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Optional Cable
To order pins with a standard cable assembly attached, add "-C" to the part numbe. For an optional 10" nylon lanyard, add "-NL" to the part number.
Material
| ITEM | Material | Heat Treat | Finish |
| Shank | 17-4PH Stainless Steel | Rc 40 min | N/A |
| Spindle | 17-4PH Stainless Steel | - | N/A |
| Handle | 300-Series Stainless Steel | - | N/A |
| R-Handle Ring | 302 Stainless Steel | - | N/A |
| Head and Button | 303 Stainless Steel | - | N/A |
| Collar | 300-Series Stainless Steel | - | N/A |
| Spring and Ring | 17-7PH/302 Stainless Steel | - | N/A |
| Balls | 440C Stainless Steel | - | N/A |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) | G Diameter (Inch) | P Diameter (Inch) | S (Inch) | V (Inch) |
| 3/8" | 0.3735 / .3720" | 4.00" | 0.440" | 0.350" | 0.30" | 1.60" | 0.85" | 0.51" | 1.39" | 2.00" | 2.34" |
