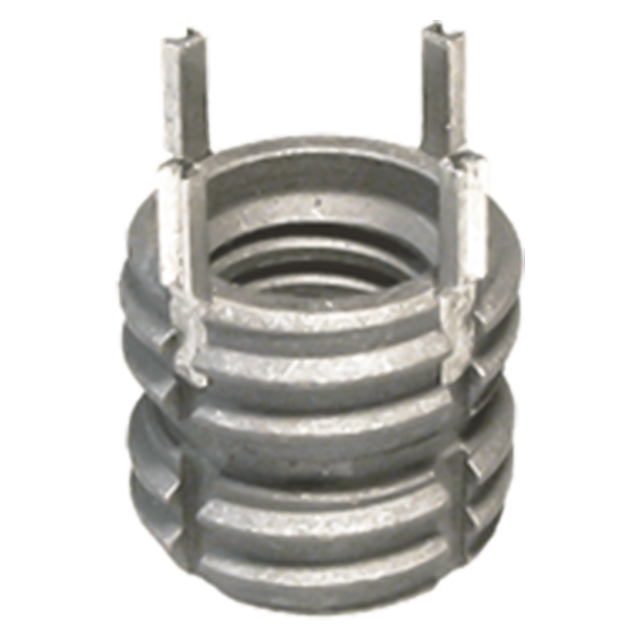

Key Inserts-Heavy Duty, Stainless Steel, Internal Thread Locking
Internal-thread-locking version of our heavy-duty inserts. These general-purpose threaded inserts have a thick, heavy-duty thread wall. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. These stainless inserts provide strong, permanent stainless steel threads in any parent Material, ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating
Internal Thread Locking
This feature uses a modified internal thread to prevent the installed bolt or stud from rotating. This feature is useful for one-time, permanent installations.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Body | 303 Stainless Steel | - | - | ✔ |
| Keys | 302 Stainless Steel | - | - | ✔ |
Parts Specification
| Internal Thread | External Thread | Length(inch) | Shear Engagement Area (sq In.) |
| 5/8-11 | 7/8-14 | .87" | 1.242 sq in. |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
