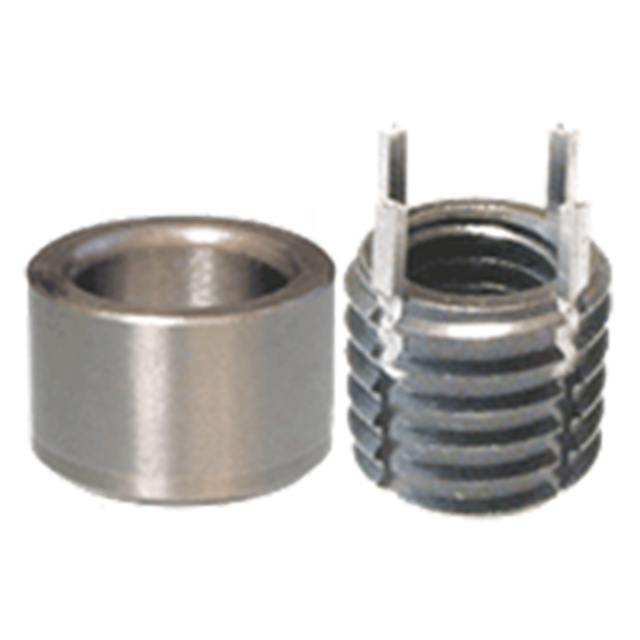

Key Inserts
General-purpose threaded inserts with a thick, heavy-duty thread wall, suitable for most applications. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. They provide strong, permanent steel threads in almost any parent material-ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide or Dry Lube | Yes | Yes |
| Keys | 302 Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Internal Thread (Inch) | External Thread (Inch) | Length (Inch) |
| 5/8-11" | 7/8-14" | 0.87" |
