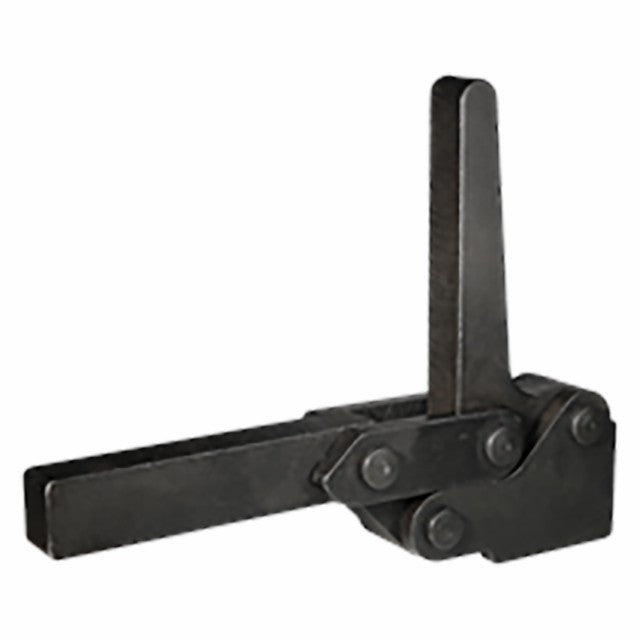

CL-51-HDC Series
Solid Arm, Straight Base
Heavy-duty toggle clamps with a machined steel handle and clamping arm. Simple, easy-opening clamps with extra arm reach. These low-arm clamps extend farther over the workpiece than any other toggle clamp their size. Arm opens 83° while handle moves 83°-ideal when wide opening is not desirable. Solid arm can be tapped to accept a spindle, or otherwise modified. 5000 lbs holding capacity.
Clamping Action
Clamped Position
Open Position
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | Yes | Black Oxide | Yes | Yes |
Parts Specification
| Description | Holding Capacity (lbs) | Shipping Weight (lbs) |
| Solid Arm, Straight Base | 5000 lbs. | 5.0 lbs. |
