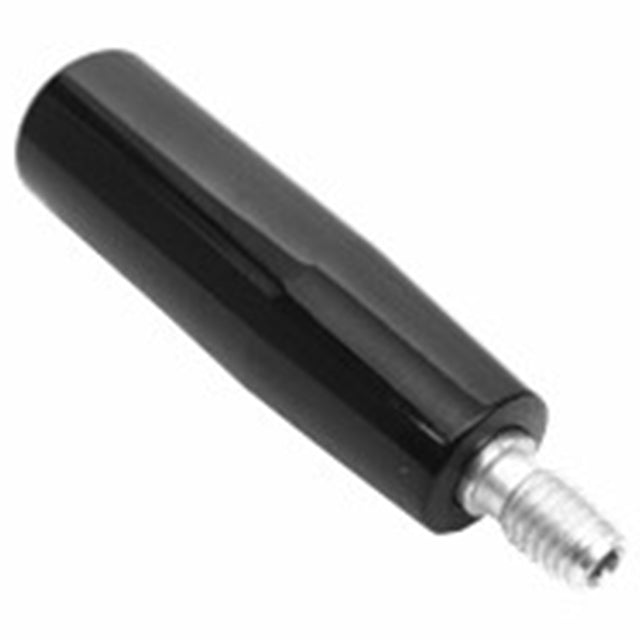

Revolving Handles-Square Design, Threaded
Modern square-design handle made of phenolic plastic with a threaded steel spindle. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank. Threaded spindle has a hex socket for easy installation.
Application Information
Revolving Handles can be used to make custom crank handles.
Material
| Item | Meterial | Heat Treat | Finish | DFARS | RoHS |
| Body | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals) | Yes | Yes | Yes | Yes |
| Threaded Spindle | Mild Steel | Yes | Zinc Plated Clear Chromate, Molded In | Yes | Yes |
Parts Specification
| Handle Size | A | B (Inch) | C Thread (Inch) | D Diameter (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) |
| Size 5 | 4.12 | 0.79" | 1/2-13" | 1.22" | 0.55" | 6mm" | 0.10" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
