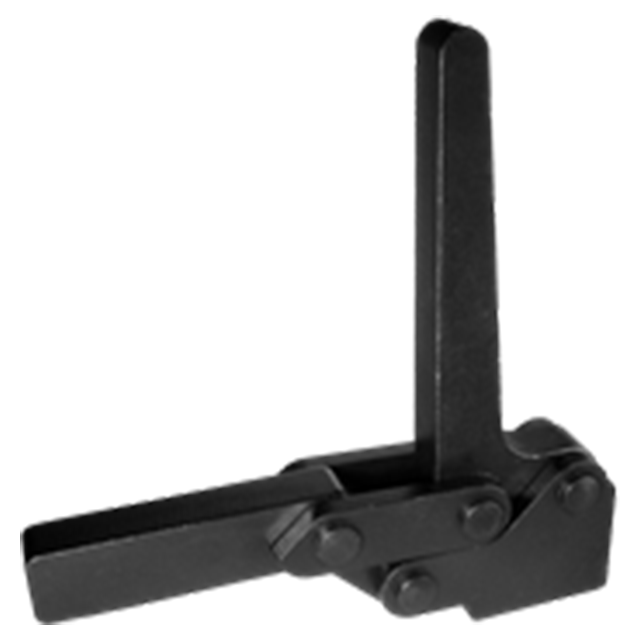

CL-50-HDC Series-2500lbs.
Solid Arm, Straight Base
Heavy-duty toggle clamps with a machined steel handle and clamping arm. Simple, easy-opening clamps with extra arm reach. These low-arm clamps extend farther over the workpiece than any other toggle clamp their size. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Solid arm can be tapped to accept a spindle, or otherwise modified. 2500 lbs. holding capacity.
Optional Flanged Base
Solid Arm, Flanged Base
Clamping Action
Clamped Position
Open Position
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Solid Arm, Attached Flange Base | 2500lbs. | 2.5lbs. |
